The Essential Guide to PCB Potting Compounds: Enhancing Durability and Performance

Jun 25, 2024
3 min read

In the fast-paced world of electronics, ensuring the durability and reliability of printed circuit boards (PCBs) is a top priority. One highly effective method for safeguarding these vital components is through the use of PCB potting compounds.

These materials offer crucial protection against environmental hazards, mechanical stress, and electrical interference. But what exactly is a PCB potting compound, and why is it so important? Let’s explore.

What is a PCB Potting Compound?

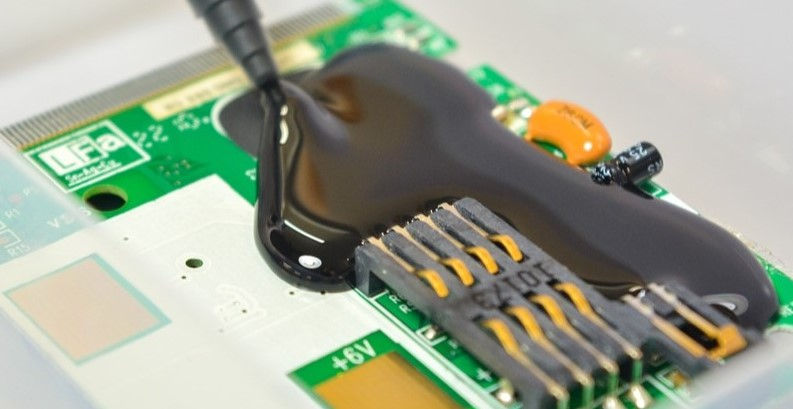

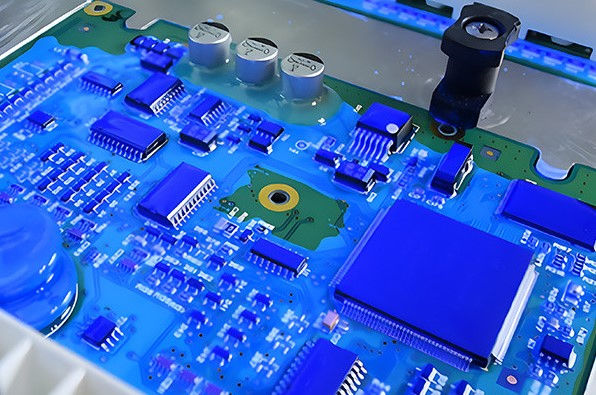

A PCB potting compound is an insulating material used to encapsulate and protect PCBs and their components. This compound is typically poured over the PCB, filling all voids and covering the entire assembly.

Once it cures, it forms a solid, protective barrier. Common materials used for potting include epoxy, silicone, and polyurethane. Each of these materials has unique properties that make them suitable for different applications.

Key Benefits of Using PCB Potting Compounds

Environmental Protection: Potting compounds provide a robust shield against environmental hazards such as moisture, dust, chemicals, and extreme temperatures. This barrier helps prevent corrosion and damage to sensitive electronic components, significantly extending the lifespan of the PCB.
Mechanical Stability: Electronics are often subjected to vibrations and mechanical shocks, which can lead to component failure. Potting compounds offer mechanical support and cushioning, reducing the risk of damage from physical impacts. This is particularly important in applications exposed to harsh conditions.
Electrical Insulation: Potting compounds offer excellent electrical insulation properties. They prevent short circuits and protect the PCB from electrical interference, ensuring stable and reliable performance even in challenging environments.
Thermal Management: Some potting compounds are designed to enhance thermal management by dissipating heat away from critical components. Effective thermal management is crucial in high-power applications to prevent overheating and ensure optimal performance.
Security and Tamper Resistance: For applications requiring high security, potting compounds provide an additional layer of protection, making it difficult to access and tamper with the PCB. This helps prevent unauthorized modifications and ensures the integrity of the device.

Choosing the Right Potting Compound

Selecting the appropriate potting compound depends on several factors, including the operating environment, thermal requirements, and the level of protection needed. Here’s a brief overview of the common types:

Epoxy: Known for its excellent adhesion and chemical resistance, epoxy is ideal for applications requiring robust mechanical protection and durability. However, its rigidity may not be suitable for all scenarios.
Silicone: Silicone potting compounds offer flexibility and excellent thermal stability, making them suitable for high-temperature environments and applications involving thermal cycling. They are also resistant to moisture and chemicals.
Polyurethane: Polyurethane provides a balance between flexibility and toughness, making it well-suited for applications requiring impact resistance and environmental protection. However, it may not offer the same level of thermal stability as silicone.

Application Process

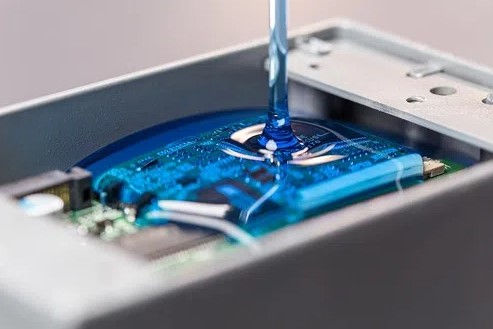

The process of applying a potting compound involves several steps. First, the PCB must be thoroughly cleaned and prepared. Next, the potting compound is mixed and poured over the PCB, ensuring complete coverage and filling all voids. The assembly is then cured, typically at room temperature or with the application of heat, depending on the compound used.

Conclusion

PCB potting compounds are indispensable for enhancing the durability, reliability, and performance of electronic assemblies. By providing protection against environmental factors, mechanical stress, and electrical interference, these compounds play a crucial role in the longevity of PCBs.

Whether using epoxy, silicone, or polyurethane, selecting the right potting compound for your specific application is essential for the success and reliability of your electronic devices.
